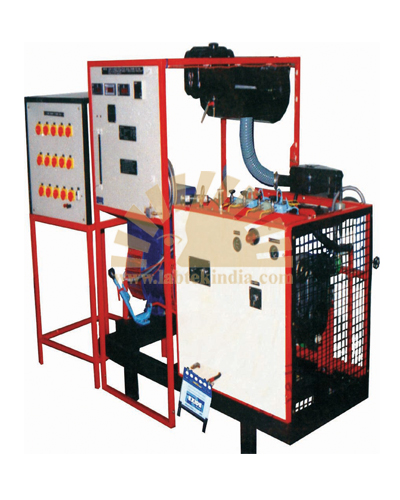

Four Stroke Four Cylinder Diesel Engine Test Rig

Introduction
The test rig is designed to provide self-contained facility for teaching Internal Combustion (Compression Ignition) engine principles. The equipment is instrumented so that the following experiments could be performed.
1). Bhp Measurement
2). Ihp Measurement
3). Fhp Measurement
4). Fuel Consumption Measuement
5). Air Intake Measurement
6). Measurement Of Heat Rejected To Water Jacket
7). Heat Balance Test

The engine test rig facilitate to evaluate the following
1). Performance at various throttle position
2). Heat Balance Sheet.
3). Performance (BHP Measurement) from no load to full load.

Description
Two main components from main parts of the test rig. Welded steel base plate, complete with Dynamometer, drive shaft with safety guard, engine starting battery of 12V capacity and cooling water arrangement Panel board positioned over the base plate consisting of fuel system with flow measurement by burette, air flow measurement system, temperature and speed indicator.

Dynamometer (as applicable)
1). The Dynamometer used is a Hydraulic Dynamometer capable of absorbing a maximum load of 10 HP at a speed of 1500 RPM
2). The Loading device used is an AC Alternator of matching capacity to load the engine up to 10 HP at 1500 RPM along with Resisistance loading arrangement for alternator.
3). The loading device used is an Eddy Current Dynamometer of matching capacity to load the engine up to 10 HP at 1500 RPM.

Instrumentation (as applicable)
1). The following instrumentation is provided.
2). Engine oil Pressure gauge
3). Engine charging circuit ammeter
4). 'U' tube manometer for air flow rate
5). Burette for fuel flow rate
6). Digital Temperature Indicator- Multi point indicator with thermocouples.
7). Digital Voltmeter, Ammeter

Engine starting
The test rig incorporates a 12 V DC electrical system designed for use with typical engine self starter system. The battery is included in the scope of supply.

Controls
The test rig is arranged for manual control with Ignition switch for engine starting manual throttle control, manual control for hydraulic dynamometer loading and a manual operated clutch actuator arrangement to drive the engine with load or without load (For No Load testing)

Fuel measuring arrangement
Fuel Measuring Arrangement consists of fuel tank, burette and suitable cock all mounted on a suitable framework and panel board and supplied with fuel piping from fuel tank to Engine.

Air intake measurement & heat carried away by exhaust gas
Consisting of an air tank mounted on an iron stand fitted with a suitable orifice plate, manometer, Thermocouple for measuring the exhaust gas temperature with pocket connection with instruments suitably mounted on a panel board. Heat carried away by cooling water Consists of suitable inlet and outlet piping with flow control valve. Rota meter to measure the rate of flow of cooling water and Thermocouple with pocket connections for measuring inlet and outlet water temperature.

Engine
Four Cylinder Four Stroke Water Cooled Vertical Diesel Engine to develop 10 HP @ 1500 RPM (Make: Hindustan Stride/Isuzu)

Services
Electrical supply of 230V, Single Phase, 50Hz AC & external cooling water supply.
