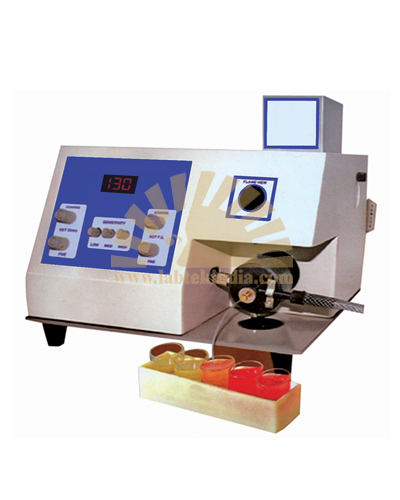

Flame Photometer

Model: SL-CC-102

BS 4550, ASTM C 114-17
1) Extremely useful for medical and laboratory use
2) Highly Accurate using Micro controller Technology
3) 3 Point Calibration using curve fitting software
4) Direct results in PPM and MEQ

MICROPROCESSOR BASED FLAME PHOTOMETER is an ideal instrument for the determination of Sodium, Potassium, Calcium and Lithium. It uses the latest Micro-controller technology and advanced engineering techniques so as to give enhanced accuracy and reproducibility. The System has 3 point calibration facility using curve fitting software. It has soft touch membrane keys for ease of operation. The solution is aspirated through an atomiser. Air, sample and the fuel are mixed in the mixing chamber which is then sprayed as a very fine mist into the flame. The color of the flame is changed depending upon the concentration of elements present. Radiations form the flame passes through the sensing system and specific narrow band interference filter which permits only the characteristic radiation to pass to the photo-detector. The output of the photodetector is then processed by the micro-controller and the final results are displayed on the digital display.

Range Serum Urine Sensitivity
Na: 0.1 to 100 0.435-435 0.87-870 01.ppm
K: 1 to 100 0.256-256 0.512-512 Accuracy
Ca: 15 to 100 - - + 1% up to 40ppm
Li : 0.5 to 100 0.724-144.8 - Readout
Power Air Supply : By oil free mini compressor unit with + 2% above 40ppm
230V + 10% AC, 50Hz pressure regulator
