GI Test Sieves

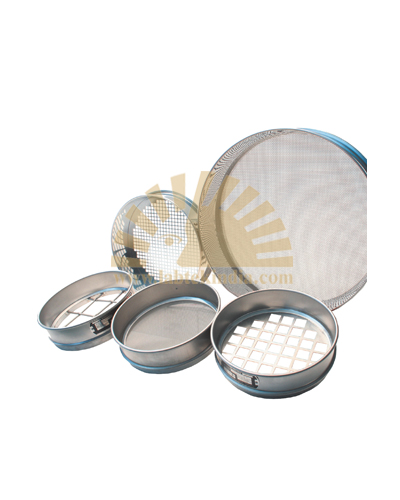

Standard Test Sieves 30 cm diameter, (G.I. Sheet Frame)

Model: SL-GT-095

IS :460 (Par t-I, II) 1978
Test Sieves is a common laboratory requirement. Sieves are used for sieving of chemical powders, medical powders, aggregate, sand soil and cement etc.

These sieves are manufactured as per various standards like IS, BS, ASTM, DIN etc. In Civil Engineering it is a common practice to use sieves for gradation and particle size determination. Manufacturers brass frame and G.I. Frames Sieves of dia. 200mm, 300mm and 450mm. Normally brass sieves are manufactured in 200cm dia. and frame is spun brass, The Sieve cloth used is standard SS or prosper bronze wire mush.

The G.I. Frames sieves manufactured normally n sizes 300mm dia. or 450mm dia. have a steel perforated sheet having accurately punched square holes.

Size Available:
Sizes Available : 125mm, 106mm, 100mm, 90mm, 80mm, 75mm, 63mm, 53mm, 50mm, 45mm, 40mm, 37.5mm, 31.5mm, 26.5mm, 25mm, 22.4mm, 20mm, 19mm, 16mm,14mm, 13.2mm, 12.5mm, 11.2mm, 10mm, 9.5mm, 8mm, 6.7mm, 6.3mm, 5.6mm, 4.75mm, 4.0mm, 3.35mm, 2.36mm, 1.18mm, 1.00mm. Lid & receiver in G.I. Sheet frame for 300mm dia.

CONVERSION TABLE FOR STANDARD TEST SIEVES
AS Per IS Standard Sieve Sieve Series width of Aperture mm As Per BS Standard Sieve mesh As Per ASTM Standard Sieve
5.60mm 5.60 - 3.5
4.75mm 4.75 4 4
4.00mm 4.00 - 5
3.35mm 3.35 5 6
2.80mm 2.80 6 7
2.36mm 2.36 7 8
2.00mm 2.00 8 10
1.70mm 1.70 10 12
1.40mm 1.40 12 14
1.18mm 1.18 14 16
1.00mm 1.00 16 18
850micron 0.850 18 20
710micron 0.710 22 25
600micron 0.600 25 30
500micron 0.500 30 35
425micron 0.425 36 40
355micron 0.355 44 45
300micron 0.300 52 50
250micron 0.250 60 60
212micron 0.212 72 70
180micron 0.180 85 80
150micron 0.150 100 100
125micron 0.125 120 120
106micron 0.106 150 140
90.9micron 0.090 170 170
75.0micron 0.075 200 200
63.0micron 0.063 240 230
53.0micron 0.053 300 270
45.0micron 0.045 350 325
